KF87減速機重量：KF87減速機重量87公斤，KF87減速機帶電機重量分別如下

KF87減速機帶0.75KW電機重量103公斤，KF87減速機帶1.1KW電機重量107公斤，KF87減速機帶1.5KW電機重量110公斤，KF87減速機帶2.2KW電機重量119公斤，KF87減速機帶3KW電機重量123公斤，KF87減速機帶4KW電機重量134公斤，KF87減速機帶5.5KW電機重量147公斤，KF87減速機帶7.5KW電機重量160公斤，KF87減速機帶11KW電機重量259公斤，KF87減速機帶15KW電機重量222公斤，KF87減速機帶18.5KW電機重量259公斤，KF87減速機帶22KW電機重量272公斤。直角減速機

KF87減速機加油量：可加合成油

KF87減速機M2方式安裝加8.2升，KF87減速機M1方式安裝加3.7升，KF87減速機M3方式安裝加9升，KF87減速機M4方式安裝加11.9升，KF87減速機M5方式安裝加8.4升，KF87減速機M6方式安裝加8.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

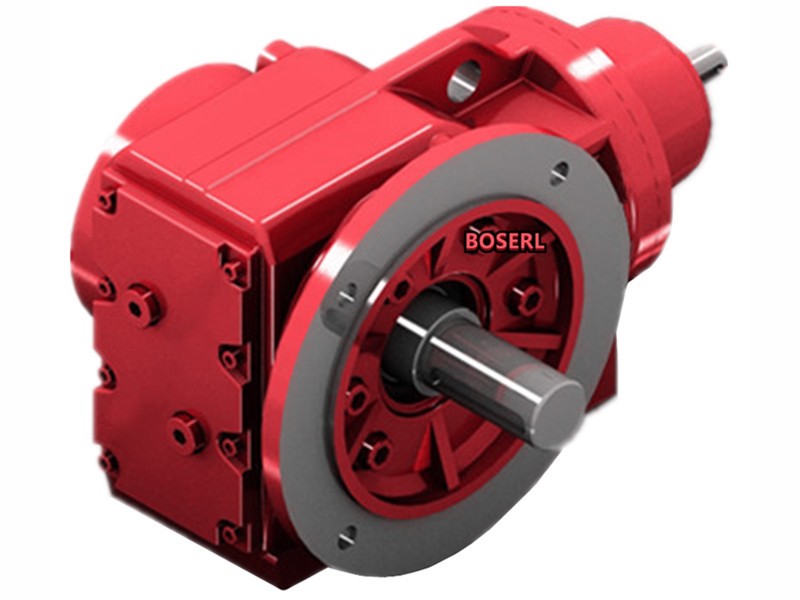

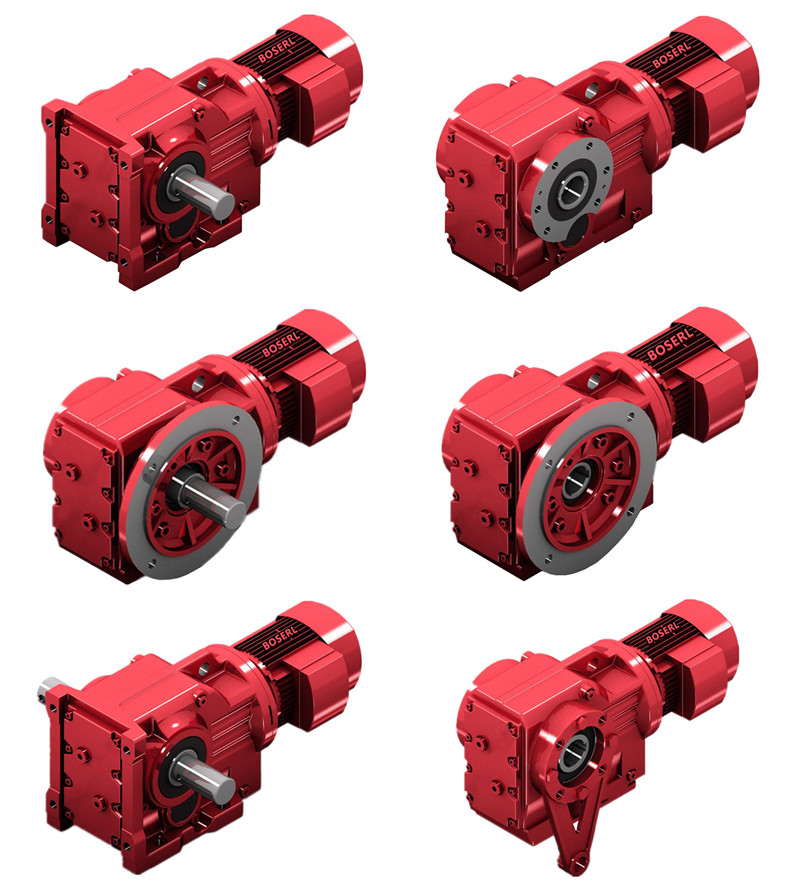

KF87減速機實物圖：圖一為KF87立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K87臥式方式安裝螺旋錐齒輪減速電機，圖三為KA87臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF87立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF87減速機型號表示方法：

KF87減速機型號結構KF87-B18.5KW-4P-減速比-安裝方式-接線盒位置。

KF87減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF87、K87、KA87、KAF87減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF87減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K87減速機參數：

K87減速機輸出轉數7.1轉,8轉,8.5轉,9.5轉,11轉,12轉,14轉,16轉,18轉,20轉,22轉,25轉,28轉,32轉,38轉,45轉,50轉,56轉,62轉,72轉,80轉,88轉,97轉,111轉,125轉,140轉,169轉,194轉（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）。

K87減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機K87帶K87帶0.75KW，K87帶1.1KW，K87帶1.5KW，K87帶2.2KW，K87帶3KW，K87帶4KW，K87帶5.5KW，K87帶7.5KW，K87帶11KW，K87帶15KW，K87帶18.5KW，K87帶22KW。

K87減速機輸出扭矩1300N.m,1400N.m,1500N.m,1800N.m,2000N.m,2100N.m,2200N.m,2300N.m,2500N.m,2600N.m,2700N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）。

KF87減速機減速比197.37比,174.19比,164.34比,147.32比,126.91比,115.82比,102.71比,86.34比,79.34比,70.46比,63比,56.64比,49.16比,44.02比,36.52比,31.39比,27.88比,24.92比,22.41比,19.45比,17.42比,16比,14.45比,12.56比,11.17比,10比,8.29比,7.21比。

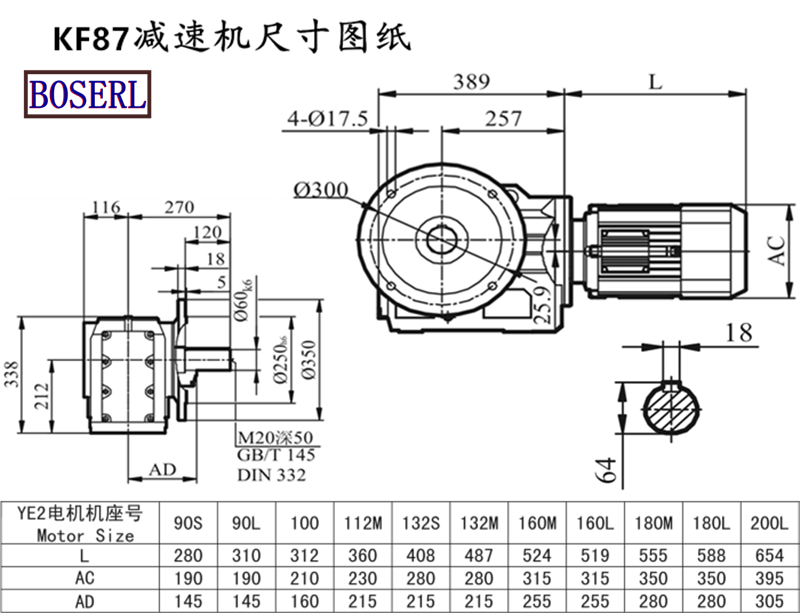

KF87減速機外形尺寸：輸出軸直徑Φ60（可定做）+鍵4，高340*寬386（帶輸出軸）*長389

KF87減速機型號：KF87AQA80,KF87AQA100,KF87AQA115,KF87AQA140,KF87AQA160,KF87AQA190,KF87AQH80,KF87AQH100,KF87AQH115,KF87AQH140,KF87AQH160,KF87AQH190,JRTKF87-Y0.37KW,JRTKF87-Y0.55KW,JRTKF87-Y0.75KW,JRTKF87-Y1.1KW,JRTKF87-Y1.5KW,JRTKF87-Y100M4,JRTKF87-Y112M4,JRTKF87-Y11KW,JRTKF87-Y132M4,JRTKF87-Y15KW,JRTKF87-Y160M4,JRTKF87-Y18.5KW,JRTKF87-Y180M4,JRTKF87-Y2.2KW,JRTKF87-Y200M4,JRTKF87-Y22KW,JRTKF87-Y3KW,JRTKF87-Y4KW,JRTKF87-Y5.5KW,JRTKF87-Y7.5KW,JRTKF87-Y71M4,JRTKF87-Y80M4,JRTKF87-Y90M4,JRTKF87-YEJ100M4,JRTKF87-YEJ112M4,JRTKF87-YEJ132M4,JRTKF87-YEJ160M4,JRTKF87-YEJ180M4,JRTKF87-YEJ200M4,JRTKF87-YEJ71M4,JRTKF87-YEJ80M4,JRTKF87-YEJ90M4,JRTKF87-YS100M4,JRTKF87-YS112M4,JRTKF87-YS132M4,JRTKF87-YS160M4,JRTKF87-YS180M4,JRTKF87-YS200M4,JRTKF87-YS71M4,JRTKF87-YS80M4,JRTKF87-YS90M4,JRTKF87-YVP100M4,JRTKF87-YVP112M4,JRTKF87-YVP132M4,JRTKF87-YVP160M4,JRTKF87-YVP180M4,JRTKF87-YVP200M4,JRTKF87-YVP71M4,JRTKF87-YVP80M4,JRTKF87-YVP90M4,JRTKF87-YVPEJ100M4,JRTKF87-YVPEJ112M4,JRTKF87-YVPEJ132M4,JRTKF87-YVPEJ160M4,JRTKF87-YVPEJ180M4,JRTKF87-YVPEJ200M4,JRTKF87-YVPEJ71M4,JRTKF87-YVPEJ80M4,JRTKF87-YVPEJ90M4,EWKF87-Y0.37KW,EWKF87-Y0.55KW,EWKF87-Y0.75KW,EWKF87-Y1.1KW,EWKF87-Y1.5KW,EWKF87-Y100M4,EWKF87-Y112M4,EWKF87-Y11KW,EWKF87-Y132M4,EWKF87-Y15KW,EWKF87-Y160M4,EWKF87-Y18.5KW,EWKF87-Y180M4,EWKF87-Y2.2KW,EWKF87-Y200M4,EWKF87-Y22KW,EWKF87-Y3KW,EWKF87-Y4KW,EWKF87-Y5.5KW,EWKF87-Y7.5KW,EWKF87-Y71M4,EWKF87-Y80M4,EWKF87-Y90M4,EWKF87-YEJ100M4,EWKF87-YEJ112M4,EWKF87-YEJ132M4,EWKF87-YEJ160M4,EWKF87-YEJ180M4,EWKF87-YEJ200M4,EWKF87-YEJ71M4,EWKF87-YEJ80M4,EWKF87-YEJ90M4,EWKF87-YS100M4,EWKF87-YS112M4,EWKF87-YS132M4,EWKF87-YS160M4,EWKF87-YS180M4,EWKF87-YS200M4,EWKF87-YS71M4,EWKF87-YS80M4,EWKF87-YS90M4,EWKF87-YVP100M4,EWKF87-YVP112M4,EWKF87-YVP132M4,EWKF87-YVP160M4,EWKF87-YVP180M4,EWKF87-YVP200M4,EWKF87-YVP71M4,EWKF87-YVP80M4,EWKF87-YVP90M4,EWKF87-YVPEJ100M4,EWKF87-YVPEJ112M4,EWKF87-YVPEJ132M4,EWKF87-YVPEJ160M4,EWKF87-YVPEJ180M4,EWKF87-YVPEJ200M4,EWKF87-YVPEJ71M4,EWKF87-YVPEJ80M4,EWKF87-YVPEJ90M4,SLKF87-Y0.37KW,SLKF87-Y0.55KW,SLKF87-Y0.75KW,SLKF87-Y1.1KW,SLKF87-Y1.5KW,SLKF87-Y100M4,SLKF87-Y112M4,SLKF87-Y11KW,SLKF87-Y132M4,SLKF87-Y15KW,SLKF87-Y160M4,SLKF87-Y18.5KW,SLKF87-Y180M4,SLKF87-Y2.2KW,SLKF87-Y200M4,SLKF87-Y22KW,SLKF87-Y3KW,SLKF87-Y4KW,SLKF87-Y5.5KW,SLKF87-Y7.5KW,SLKF87-Y71M4,SLKF87-Y80M4,SLKF87-Y90M4,SLKF87-YEJ100M4,SLKF87-YEJ112M4,SLKF87-YEJ132M4,SLKF87-YEJ160M4,SLKF87-YEJ180M4,SLKF87-YEJ200M4,SLKF87-YEJ71M4,SLKF87-YEJ80M4,SLKF87-YEJ90M4,SLKF87-YS100M4,SLKF87-YS112M4,SLKF87-YS132M4,SLKF87-YS160M4,SLKF87-YS180M4,SLKF87-YS200M4,SLKF87-YS71M4,SLKF87-YS80M4,SLKF87-YS90M4,SLKF87-YVP100M4,SLKF87-YVP112M4,SLKF87-YVP132M4,SLKF87-YVP160M4,SLKF87-YVP180M4,SLKF87-YVP200M4,SLKF87-YVP71M4,SLKF87-YVP80M4,SLKF87-YVP90M4,SLKF87-YVPEJ100M4,SLKF87-YVPEJ112M4,SLKF87-YVPEJ132M4,SLKF87-YVPEJ160M4,SLKF87-YVPEJ180M4,SLKF87-YVPEJ200M4,SLKF87-YVPEJ71M4,SLKF87-YVPEJ80M4,SLKF87-YVPEJ90M4,DSZKF87-Y0.37KW,DSZKF87-Y0.55KW,DSZKF87-Y0.75KW,DSZKF87-Y1.1KW,DSZKF87-Y1.5KW,DSZKF87-Y100M4,DSZKF87-Y112M4,DSZKF87-Y11KW,DSZKF87-Y132M4,DSZKF87-Y15KW,DSZKF87-Y160M4,DSZKF87-Y18.5KW,DSZKF87-Y180M4,DSZKF87-Y2.2KW,DSZKF87-Y200M4,DSZKF87-Y22KW,DSZKF87-Y3KW,DSZKF87-Y4KW,DSZKF87-Y5.5KW,DSZKF87-Y7.5KW,DSZKF87-Y71M4,DSZKF87-Y80M4,DSZKF87-Y90M4,DSZKF87-YEJ100M4,DSZKF87-YEJ112M4,DSZKF87-YEJ132M4,DSZKF87-YEJ160M4,DSZKF87-YEJ180M4,DSZKF87-YEJ200M4,DSZKF87-YEJ71M4,DSZKF87-YEJ80M4,DSZKF87-YEJ90M4,DSZKF87-YS100M4,DSZKF87-YS112M4,DSZKF87-YS132M4,DSZKF87-YS160M4,DSZKF87-YS180M4,DSZKF87-YS200M4,DSZKF87-YS71M4,DSZKF87-YS80M4,DSZKF87-YS90M4,DSZKF87-YVP100M4,DSZKF87-YVP112M4,DSZKF87-YVP132M4,DSZKF87-YVP160M4,DSZKF87-YVP180M4,DSZKF87-YVP200M4,DSZKF87-YVP71M4,DSZKF87-YVP80M4,DSZKF87-YVP90M4,DSZKF87-YVPEJ100M4,DSZKF87-YVPEJ112M4,DSZKF87-YVPEJ132M4,DSZKF87-YVPEJ160M4,DSZKF87-YVPEJ180M4,DSZKF87-YVPEJ200M4,DSZKF87-YVPEJ71M4,DSZKF87-YVPEJ80M4,DSZKF87-YVPEJ90M4,BKF87-Y0.37KW,BKF87-Y0.55KW,BKF87-Y0.75KW,BKF87-Y1.1KW,BKF87-Y1.5KW,BKF87-Y100M4,BKF87-Y112M4,BKF87-Y11KW,BKF87-Y132M4,BKF87-Y15KW,BKF87-Y160M4,BKF87-Y18.5KW,BKF87-Y180M4,BKF87-Y2.2KW,BKF87-Y200M4,BKF87-Y22KW,BKF87-Y3KW,BKF87-Y4KW,BKF87-Y5.5KW,BKF87-Y7.5KW,BKF87-Y71M4,BKF87-Y80M4,BKF87-Y90M4,BKF87-YEJ100M4,BKF87-YEJ112M4,BKF87-YEJ132M4,BKF87-YEJ160M4,BKF87-YEJ180M4,BKF87-YEJ200M4,BKF87-YEJ71M4,BKF87-YEJ80M4,BKF87-YEJ90M4,BKF87-YS100M4,BKF87-YS112M4,BKF87-YS132M4,BKF87-YS160M4,BKF87-YS180M4,BKF87-YS200M4,BKF87-YS71M4,BKF87-YS80M4,BKF87-YS90M4,BKF87-YVP100M4,BKF87-YVP112M4,BKF87-YVP132M4,BKF87-YVP160M4,BKF87-YVP180M4,BKF87-YVP200M4,BKF87-YVP71M4,BKF87-YVP80M4,BKF87-YVP90M4,BKF87-YVPEJ100M4,BKF87-YVPEJ112M4,BKF87-YVPEJ132M4,BKF87-YVPEJ160M4,BKF87-YVPEJ180M4,BKF87-YVPEJ200M4,BKF87-YVPEJ71M4,BKF87-YVPEJ80M4,BKF87-YVPEJ90M4,GKF87-Y0.37KW,GKF87-Y0.55KW,GKF87-Y0.75KW,GKF87-Y1.1KW,GKF87-Y1.5KW,GKF87-Y100M4,GKF87-Y112M4,GKF87-Y11KW,GKF87-Y132M4,GKF87-Y15KW,GKF87-Y160M4,GKF87-Y18.5KW,GKF87-Y180M4,GKF87-Y2.2KW,GKF87-Y200M4,GKF87-Y22KW,GKF87-Y3KW,GKF87-Y4KW,GKF87-Y5.5KW,GKF87-Y7.5KW,GKF87-Y71M4,GKF87-Y80M4,GKF87-Y90M4,GKF87-YEJ100M4,GKF87-YEJ112M4,GKF87-YEJ132M4,GKF87-YEJ160M4,GKF87-YEJ180M4,GKF87-YEJ200M4,GKF87-YEJ71M4,GKF87-YEJ80M4,GKF87-YEJ90M4,GKF87-YS100M4,GKF87-YS112M4,GKF87-YS132M4,GKF87-YS160M4,GKF87-YS180M4,GKF87-YS200M4,GKF87-YS71M4,GKF87-YS80M4,GKF87-YS90M4,GKF87-YVP100M4,GKF87-YVP112M4,GKF87-YVP132M4,GKF87-YVP160M4,GKF87-YVP180M4,GKF87-YVP200M4,GKF87-YVP71M4,GKF87-YVP80M4,GKF87-YVP90M4,GKF87-YVPEJ100M4,GKF87-YVPEJ112M4,GKF87-YVPEJ132M4,GKF87-YVPEJ160M4,GKF87-YVPEJ180M4,GKF87-YVPEJ200M4,GKF87-YVPEJ71M4,GKF87-YVPEJ80M4,GKF87-YVPEJ90M4,KCF87-Y0.37KW,KCF87-Y0.55KW,KCF87-Y0.75KW,KCF87-Y1.1KW,KCF87-Y1.5KW,KCF87-Y100M4,KCF87-Y112M4,KCF87-Y11KW,KCF87-Y132M4,KCF87-Y15KW,KCF87-Y160M4,KCF87-Y18.5KW,KCF87-Y180M4,KCF87-Y2.2KW,KCF87-Y200M4,KCF87-Y22KW,KCF87-Y3KW,KCF87-Y4KW,KCF87-Y5.5KW,KCF87-Y7.5KW,KCF87-Y71M4,KCF87-Y80M4,KCF87-Y90M4,KCF87-YEJ100M4,KCF87-YEJ112M4,KCF87-YEJ132M4,KCF87-YEJ160M4,KCF87-YEJ180M4,KCF87-YEJ200M4,KCF87-YEJ71M4,KCF87-YEJ80M4,KCF87-YEJ90M4,KCF87-YS100M4,KCF87-YS112M4,KCF87-YS132M4,KCF87-YS160M4,KCF87-YS180M4,KCF87-YS200M4,KCF87-YS71M4,KCF87-YS80M4,KCF87-YS90M4,KCF87-YVP100M4,KCF87-YVP112M4,KCF87-YVP132M4,KCF87-YVP160M4,KCF87-YVP180M4,KCF87-YVP200M4,KCF87-YVP71M4,KCF87-YVP80M4,KCF87-YVP90M4,KCF87-YVPEJ100M4,KCF87-YVPEJ112M4,KCF87-YVPEJ132M4,KCF87-YVPEJ160M4,KCF87-YVPEJ180M4,KCF87-YVPEJ200M4,KCF87-YVPEJ71M4,KCF87-YVPEJ80M4,KCF87-YVPEJ90M4,MTJF87-Y0.37KW,MTJF87-Y0.55KW,MTJF87-Y0.75KW,MTJF87-Y1.1KW,MTJF87-Y1.5KW,MTJF87-Y100M4,MTJF87-Y112M4,MTJF87-Y11KW,MTJF87-Y132M4,MTJF87-Y15KW,MTJF87-Y160M4,MTJF87-Y18.5KW,MTJF87-Y180M4,MTJF87-Y2.2KW,MTJF87-Y200M4,MTJF87-Y22KW,MTJF87-Y3KW,MTJF87-Y4KW,MTJF87-Y5.5KW,MTJF87-Y7.5KW,MTJF87-Y71M4,MTJF87-Y80M4,MTJF87-Y90M4,MTJF87-YEJ100M4,MTJF87-YEJ112M4,MTJF87-YEJ132M4,MTJF87-YEJ160M4,MTJF87-YEJ180M4,MTJF87-YEJ200M4,MTJF87-YEJ71M4,MTJF87-YEJ80M4,MTJF87-YEJ90M4,MTJF87-YS100M4,MTJF87-YS112M4,MTJF87-YS132M4,MTJF87-YS160M4,MTJF87-YS180M4,MTJF87-YS200M4,MTJF87-YS71M4,MTJF87-YS80M4,MTJF87-YS90M4,MTJF87-YVP100M4,MTJF87-YVP112M4,MTJF87-YVP132M4,MTJF87-YVP160M4,MTJF87-YVP180M4,MTJF87-YVP200M4,MTJF87-YVP71M4,MTJF87-YVP80M4,MTJF87-YVP90M4,MTJF87-YVPEJ100M4,MTJF87-YVPEJ112M4,MTJF87-YVPEJ132M4,MTJF87-YVPEJ160M4,MTJF87-YVPEJ180M4,MTJF87-YVPEJ200M4,MTJF87-YVPEJ71M4,MTJF87-YVPEJ80M4,MTJF87-YVPEJ90M4,WXKF87-WSS0.37KW,WXKF87-WSS0.55KW,WXKF87-WSS0.75KW,WXKF87-WSS1.1KW,WXKF87-WSS1.5KW,WXKF87-WSS100M4,WXKF87-WSS112M4,WXKF87-WSS11KW,WXKF87-WSS132M4,WXKF87-WSS15KW,WXKF87-WSS160M4,WXKF87-WSS18.5KW,WXKF87-WSS180M4,WXKF87-WSS2.2KW,WXKF87-WSS200M4,WXKF87-WSS22KW,WXKF87-WSS3KW,WXKF87-WSS4KW,WXKF87-WSS5.5KW,WXKF87-WSS7.5KW,WXKF87-WSS71M4,WXKF87-WSS80M4,WXKF87-WSS90M4,WXKF87-WSSB100M4,WXKF87-WSSB112M4,WXKF87-WSSB132M4,WXKF87-WSSB160M4,WXKF87-WSSB180M4,WXKF87-WSSB200M4,WXKF87-WSSB71M4,WXKF87-WSSB80M4,WXKF87-WSSB90M4,WXKF87-WSSVP100M4,WXKF87-WSSVP112M4,WXKF87-WSSVP132M4,WXKF87-WSSVP160M4,WXKF87-WSSVP180M4,WXKF87-WSSVP200M4,WXKF87-WSSVP71M4,WXKF87-WSSVP80M4,WXKF87-WSSVP90M4,WXKF87-WSSVPB100M4,WXKF87-WSSVPB112M4,WXKF87-WSSVPB132M4,WXKF87-WSSVPB160M4,WXKF87-WSSVPB180M4,WXKF87-WSSVPB200M4,WXKF87-WSSVPB71M4,WXKF87-WSSVPB80M4,WXKF87-WSSVPB90M4。伺服電機減速機

KF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.goldbulltex.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K87減速機
